Amilo Pa 1510 Memory Upgrade HOWTO

If you're the proud owner of one if these Fugitsu laptops, and only have 1Gb of memory installed then you either have one 200PIN DDR2 SODIMM and can easily upgrade to 2Gb by installing another using the upgrade memory slot located underneath (Instructions for this lower down).

Or you may be in the same position I found myself in with two 512Mb SODIMM’s taking up both the internal and the upgrade slots, so here is how to upgrade to the maximum memory capacity of 2Gb for this model of laptop. The procedure may be the same for other models of the Amilo range of laptops, but I cannot guarantee this.

These are the only tools I used to do this, a  spring hook and screw driver, of course you need to take all the normal anti-static  precautions etc…. as well.

1-tools_resize

First of all we need to remove the Battery, cant be doing with any power running through the system while doing this.

2-remover_battery_resize

We now remove the Keyboard retaining screw which is clearly marked on the case.

3-remove_keyboard_screw_resize

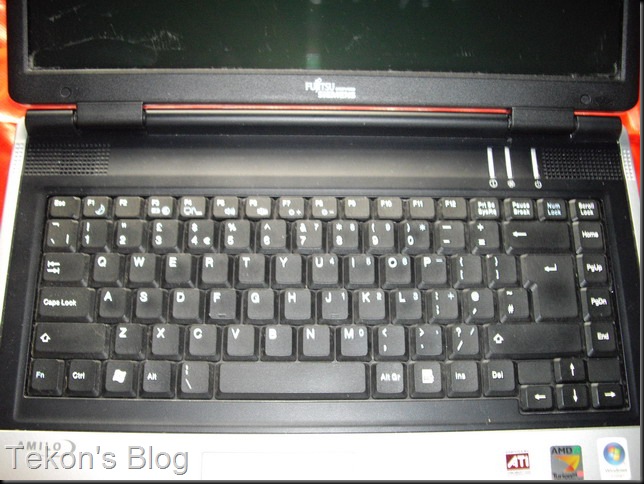

Turn the laptop over and open it up, excuse the dirt, needs a good clean :).

4-keayboard_view_resize

We now need to remove the keyboard, there are six clips that need to be released, once they are gently released the keyboard should just spring up, but be gentle with them you don’t want to break them. following are the locations of the clips.

I used the spring hook to release the clips

Clip 1 between the Tab & Caps key’s

5-clip1_resize

Clip 2 between the Esc & F1 key’s

6-clip2_resize

Clip 3 between the F5 & F6 key’s

7-clip3_resize

Clip 4 between the F10 & F11 key’s

8-clip4_resize

Clip 5 between the Num Lock & Scroll Lock key’s

9-clip5_resize

And finally Clip 6 between the PgUp & PgDn key’s

 10-clip6_resize

You should now be able to lift the keyboard.

11-lift_keyboard_resize

and then gently pull the keyboard out of the enclosure.

12-pull-keyboard_out_resize

Now turn the keyboard over face down (this way you will not have to disconnect it) to reveal the internal memory compartment. At this point I took the time to give the system a clean and gently hoover it and the keyboard of any dirt etc… that accumulated over time.

13-turn_keyboard_over_resize

Now unscrew the memory compartment,

14-unscrew_memory_ access_panel_resize

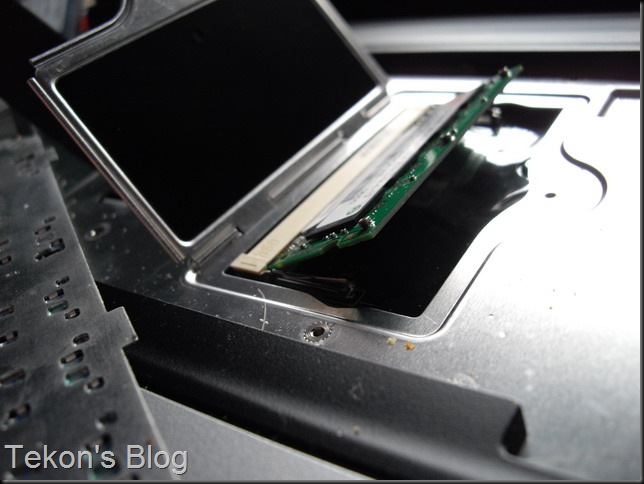

and replace the existing 512Mb memory with the new 1Gb taking care not to damage the two memory retaining clips.

15-remove_old RAM_resize

Reseal the memory compartment and replace the keyboard, push the keyboard gently at each clip point, you should hear a click for each of them.

16-replace_keyboard_resize

Now for the upgrade memory compartment.

The keyboard retaining screw was removed earlier, unless of course you are only doing the upgrade memory slot. The screws that need to be removed in order to remove the case panel are indicated with a yellow dot on the picture below.

17-remove_case_screws_resize

Remove the panel to reveal the SODIMM Slot.

18-remove_case-panel_resize

Here you can see that you can also upgrade the hard drive and the PCI-M wireless card.

19-RAM_location_resize

Replace the old or install the new 1Gb SODIMM RAM again taking care not to damage the clips.

20-remove_old_RAM_resize

Replace the case panel and reinsert the laptop battery. Plug into mains and power up.

You should now have 2Gb of RAM, enter the BIOS using the ESC key at the post screen just to make sure….

memory_count_resize

There you go one memory upgraded Amilo Pa 1510, it now fly's under Vista and it doesn't crash or BSOD anymore in my case, well not as much anyway :¬)
